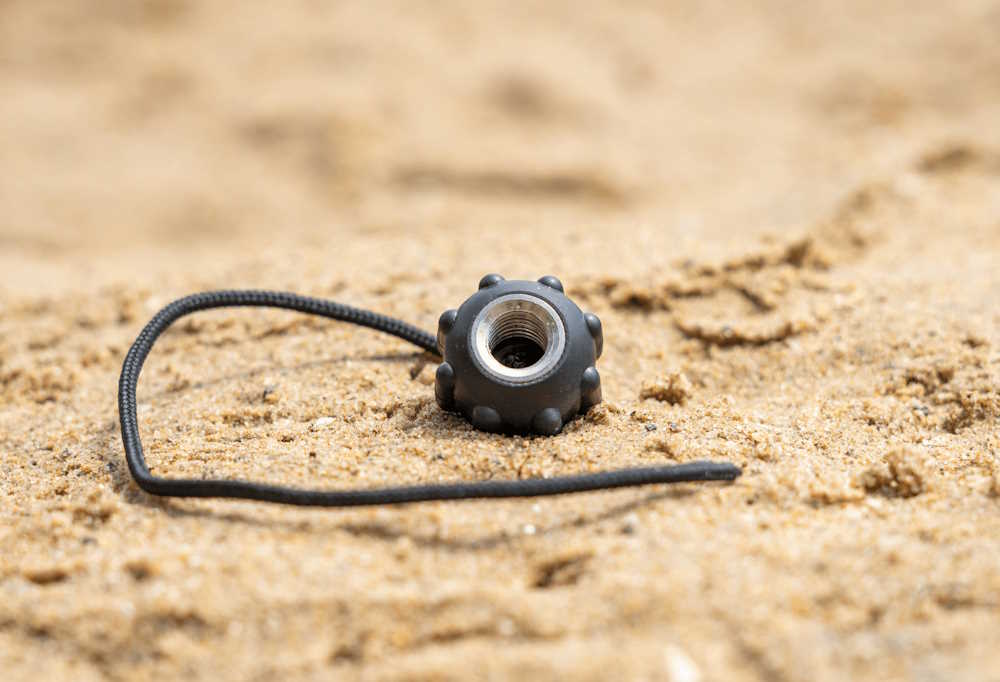

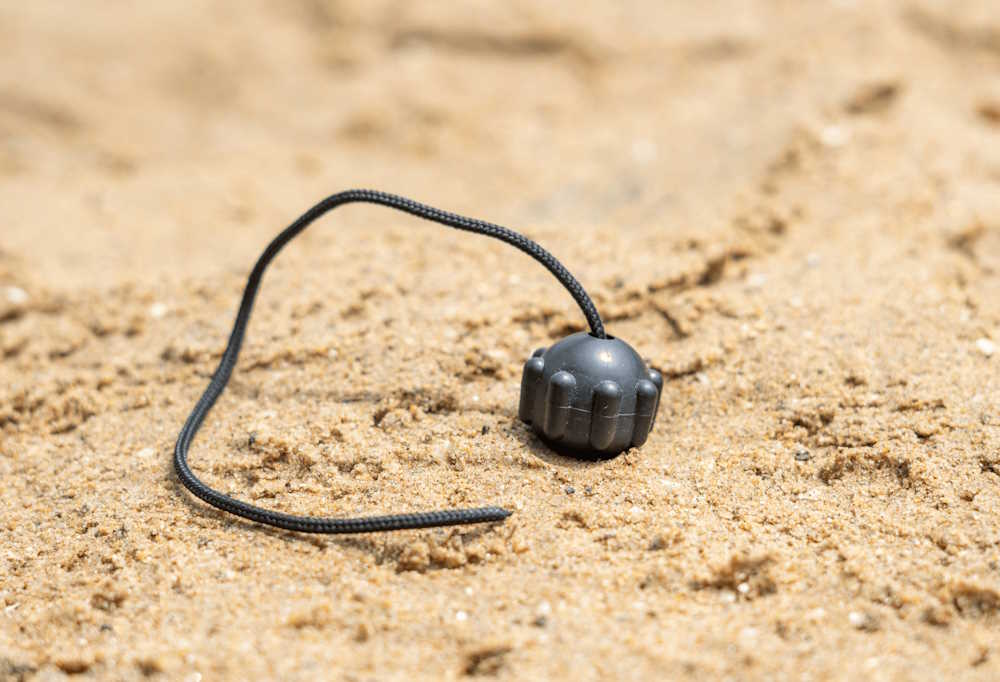

The clamp ball is an essential component of the TEMO·450 electric motor’s mounting system. It ensures the motor is held firmly and securely on its fixed or removable rowlock support. Designed to integrate seamlessly with the TEMO system, it guarantees maximum stability of the motor in all navigation conditions.

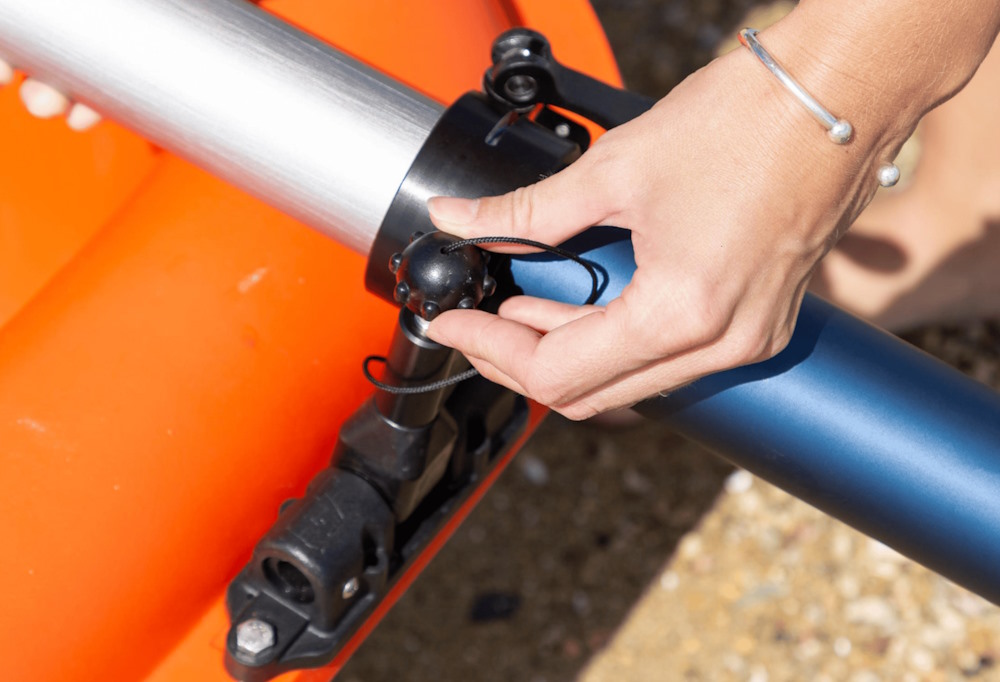

Beyond its locking function, the clamp ball effectively secures the TEMO·450 during operation, handling, or transport. When properly tightened, it prevents any risk of accidental disengagement, ensuring a safe and worry-free use of the support.
An integrated tether cord facilitates the quick and intuitive installation of the motor. This tether keeps the clamp ball attached to the rowlock, reducing the risk of loss and improving assembly efficiency in the field.
Assembly difficulty:
Replacing the clamp ball is simple, quick, and accessible to everyone..
Tools required: Phillips screwdriver, small mallet.
Approximate installation time: 5 minutes.
How to replace the clamp ball on the TEMO·450 rowlock:

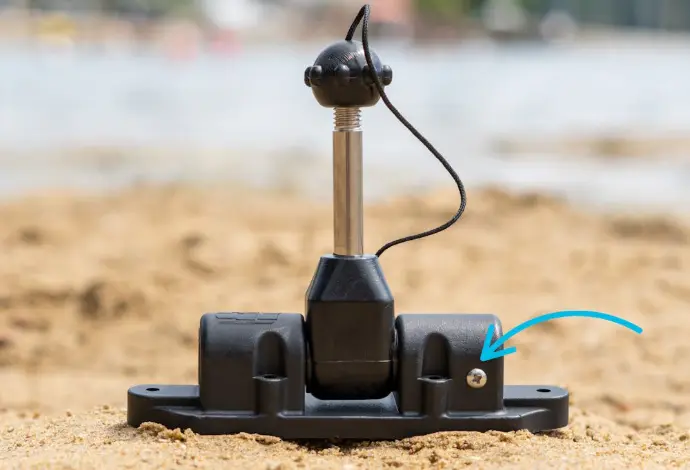

Step 1
Use a T1 Phillips screwdriver to remove the two screws on either side of the rowlock.

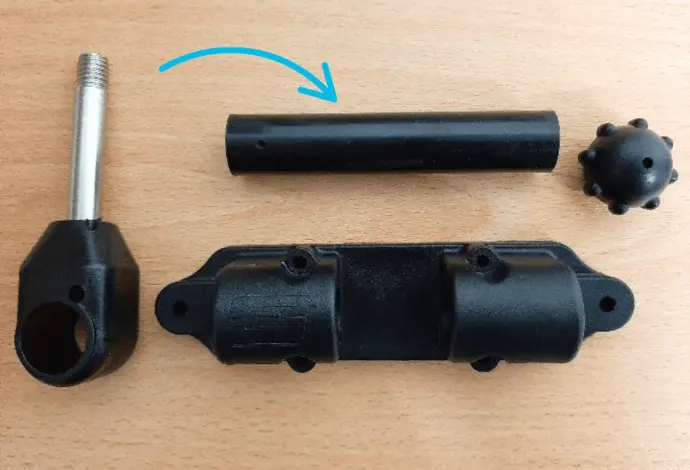

Step 2
Position the rowlock with the “GT” marking on the top left. Push the cylinder from right to left to remove it. If necessary, use a mallet carefully to avoid damaging the plastic.

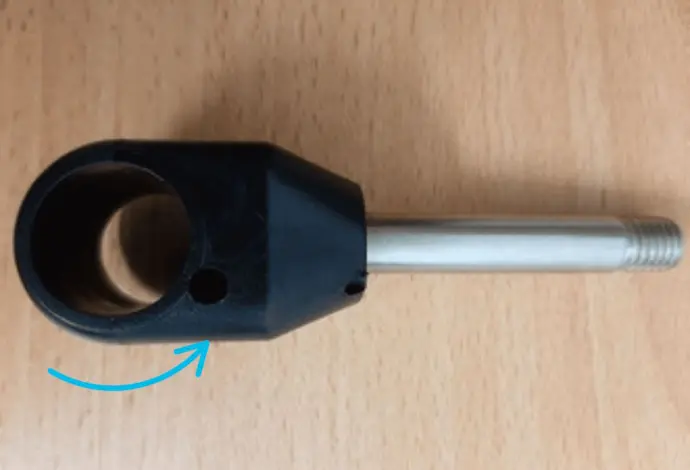

Stap 3
Thread the cord through the holes at the base of the pin. Tie a simple figure-eight knot or loop at the lower end (bottom hole) to prevent it from sliding off the pin. Reassemble the rowlock in reverse order, ensuring the cylinder’s existing holes are properly aligned.
What to do with my old clamp ball?
The old clamp ball must be disposed of at a recycling center. The kraft paper packaging should be sorted separately and recycled with other cardboard.
